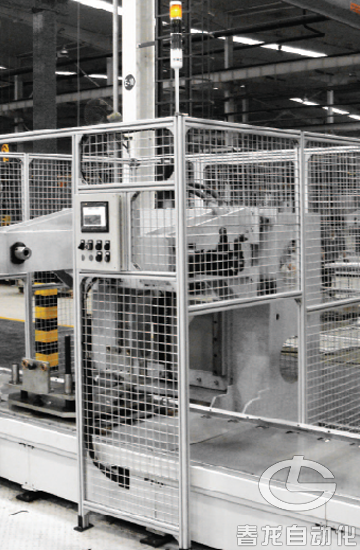

Turning Machine 翻转机
∷  翻转机
Turning Machine
主要构成
主要由气动、液压或伺服电机、滚珠丝杠提升机构、伺服翻转机构构成。
动作流程
工件到达预定工位时,定位机构将工件自动定位,翻转机构下降,夹紧工件,定位机构松开,翻转机构上升,翻转工件,翻转机构下降,松开夹紧机构,将工件稳定精确地放置于托盘上,最后翻转机构提升到初始位置,恢复原位。
Turning Machine
Main Constituents
It is mainly composed of pneumatic, hydraulic or servo motor,ball screw lifting mechanism and servo turning mechanism.
Process
Positioning mechanism automatically locates workpieces when they reach reserved workstation, while descended
turning mechanism clamps workpieces.Then, positioning mechanism loosens and turning mechanism ascends to turn workpieces.Next, turning mechanism descends and loosens clamped part, placing workpieces at the tray precisely. At last, turning mechanism rises to the initial place and normal position is restored.
